Butterfly valves

Name
Pressure Rating (Class)
Valve Size (inch)
Actuator
Connection

Centric Butterfly Valve

150～300

2’～24′

Wrench, worm gear, electric, pneumatic

Flange RF, RTJ

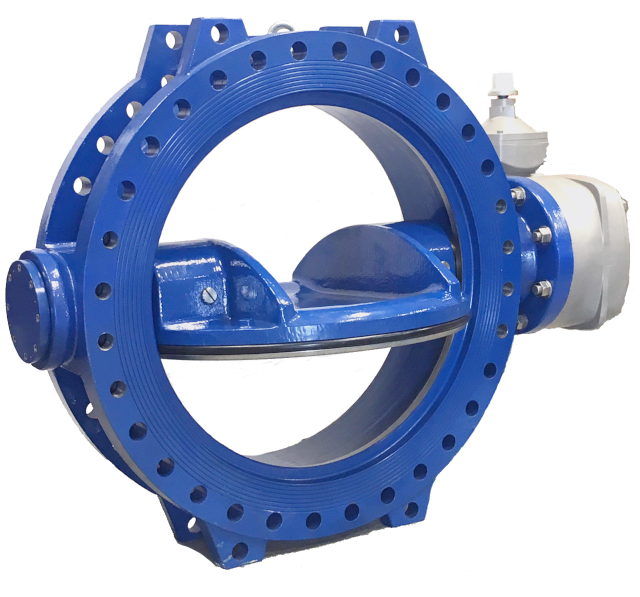

Double eccentric Butterfly Valve

150～600

2’～120′

Wrench, worm gear, electric

Flange RF, RTJ

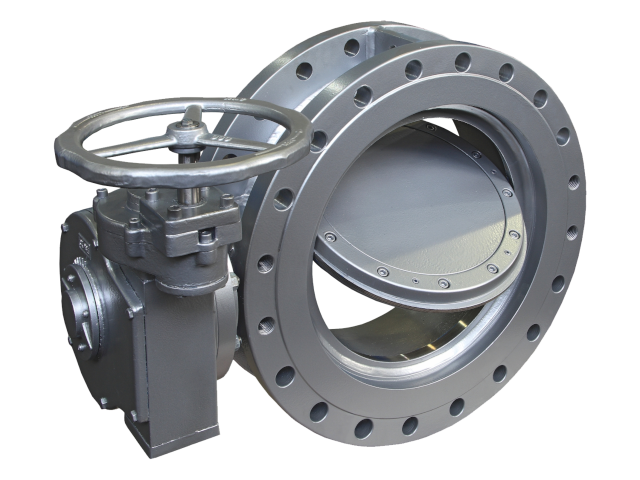

Triple eccentric butterfly valves

150～600

1/2’～180′

Hand wheel, gear box, Electric, Pneumatic

Flange RF, RTJ
